If you’re looking for the best HDMI test pattern generators for 8K in 2026, I recommend devices supporting 8K at 60Hz with 40Gbps bandwidth, HDR, and extensive testing features like EDID, HDCP, and dynamic patterns. Options like the HDMI Signal Generator and Analyzer (TE460-138), portable testers, and detailed signal analysis tools stand out. Keep exploring to discover detailed features that will guarantee reliable high-resolution testing and troubleshooting for your setup.
Key Takeaways
- Support for 8K@60Hz (4:2:0, 10-bit) with ≥40Gbps bandwidth ensures compatibility with the latest high-resolution devices.
- Extensive test patterns, static/dynamic, HDR, and multiple resolutions facilitate comprehensive signal verification.
- Advanced diagnostic features like EDID management, HDCP, packet analysis, and signal timing inspection ensure reliable testing.
- Portable, user-friendly designs with touch interfaces and battery power are ideal for field and professional use.
- Brands offering lifetime support, robust warranties, and compatibility with HDMI 2.1 standards provide long-term reliability.
| HDMI Test Signal Generator 8K 60Hz HDR 40Gbps |  | Professional Testing Power | Resolution Support: 8K@60Hz, HDR, 4K, 2K | Bandwidth: 40Gbps | Test Patterns: 33 built-in patterns | VIEW LATEST PRICE | See Our Full Breakdown |
| 2K 4K 8K HDMI Signal Generator and Analyzer (TE460-138) |  | User-Friendly Flexibility | Resolution Support: 8K UHD, 4K, 2K | Bandwidth: 40Gbps | Test Patterns: 20 static patterns | VIEW LATEST PRICE | See Our Full Breakdown |
| HDMI Signal Generator Analyzer & Cable Tester |  | Versatile Signal Analysis | Resolution Support: 8K UHD, 4K, 2K | Bandwidth: 40Gbps | Test Patterns: 20 static patterns | VIEW LATEST PRICE | See Our Full Breakdown |
| HDMI Test Pattern Generator & Signal Analyzer Kit |  | All-in-One Kit | Resolution Support: 8K@60Hz, 4K@120Hz, 1080P | Bandwidth: 48Gbps | Test Patterns: User-defined, multiple patterns | VIEW LATEST PRICE | See Our Full Breakdown |
![HDMI Test Signal Generator Analyzer Up to 8K 60Hz HDR 40Gbps, 64 Video Resolution 33 Patterns, HDMI 2.1 HDCP 2.3 CEC, Portable Design [JTECH-40GA]](https://m.media-amazon.com/images/I/41SNdcPmqvL._SL500_.jpg)
More Details on Our Top Picks
-
2K, 4K, 8K HDMI Signal Generator and Analyzer (TE460-138)
❤ EASY AND ADVANCED MODE OPTIONS: The TE460-138 is designed with EASY and ADVANCED modes of operation. EASY...
As an affiliate, we earn on qualifying purchases.

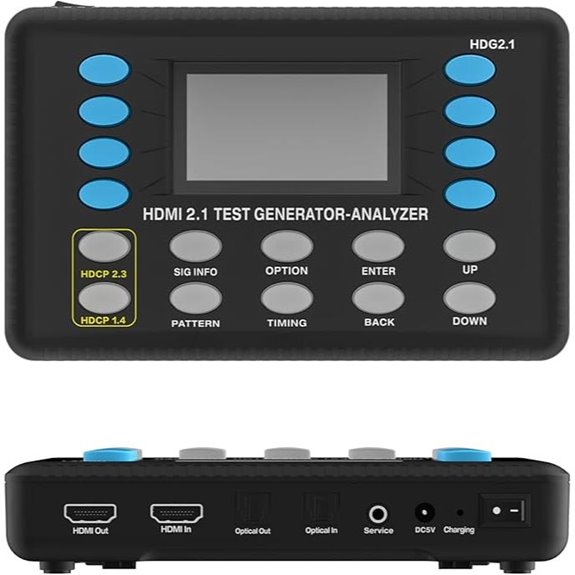

HDMI Test Signal Generator 8K 60Hz HDR 40Gbps
If you’re looking for a professional-grade HDMI test pattern generator capable of handling 8K content, the HDMI Test Signal Generator 8K 60Hz HDR 40Gbps is an excellent choice. It supports 8K@60Hz (4:2:0, 10-bit) resolution with a robust 40Gbps bandwidth, perfect for high-end testing. With 64 resolutions and 33 built-in test patterns, I can verify signals exhaustively. It also tests HDCP encryption, LPCM audio, and supports external S/PDIF input. Its advanced features include EDID management, CEC control, and detailed analysis tools. Compact and portable, it’s ideal for field use, backed by lifetime support and a one-year warranty.
- Resolution Support:8K@60Hz, HDR, 4K, 2K
- Bandwidth:40Gbps
- Test Patterns:33 built-in patterns
- EDID Management:Read/write, emulation
- Audio Support:LPCM, external S/PDIF
- Portability/Design:Compact, rechargeable battery
- Additional Feature:Built-in test patterns
- Additional Feature:Front panel controls
- Additional Feature:Supports external S/PDIF input
-
Dual 2K, 4K, 8K HDMI Signal Generator, Analyzer, and Cable Tester (TE460-402, TE460-138)
❤ EASY AND ADVANCED MODE OPTIONS: The TE460-402 is designed with EASY and ADVANCED modes of operation. EASY...
As an affiliate, we earn on qualifying purchases.
2K 4K 8K HDMI Signal Generator and Analyzer (TE460-138)
The TE460-138 stands out as an ideal choice for professionals who need precise and versatile HDMI testing, thanks to its support for 2K, 4K, and 8K resolutions at 40 Gbps bandwidth. It offers both EASY and IN-DEPTH modes, making it accessible for quick testing or detailed analysis. The device supports 40 selectable output resolutions, 20 static test patterns, and extensive source, audio, and timing analysis. It also monitors HDCP/SCDC and performs packet analysis. While cable testing is limited to EASY mode in the TE460-402 model, the TE460-138 remains a powerful tool for troubleshooting and verifying high-resolution HDMI signals.
- Resolution Support:8K UHD, 4K, 2K
- Bandwidth:40Gbps
- Test Patterns:20 static patterns
- EDID Management:Emulation, user-defined
- Audio Support:LPCM, sinewave generation
- Portability/Design:Handheld, portable
- Additional Feature:EASY/ADVANCED modes
- Additional Feature:HDMI packet analysis
- Additional Feature:Customizable sinewave audio
-
BG-AVTPG2-KIT Installer Kit; Kit Includes: BG-AVTPG-4K 4K/1080P Video Test Pattern Generator/Tester, and BG-AVTPG-MINI-G2 8K/4K/1080P HDMI 2.1 48Gpbs Portable Signal Test Generator and Analyzer
Installer kit: combines BG-AVTPG-4K and BG-AVTPG-MINI-G2 for complete HDMI testing
As an affiliate, we earn on qualifying purchases.

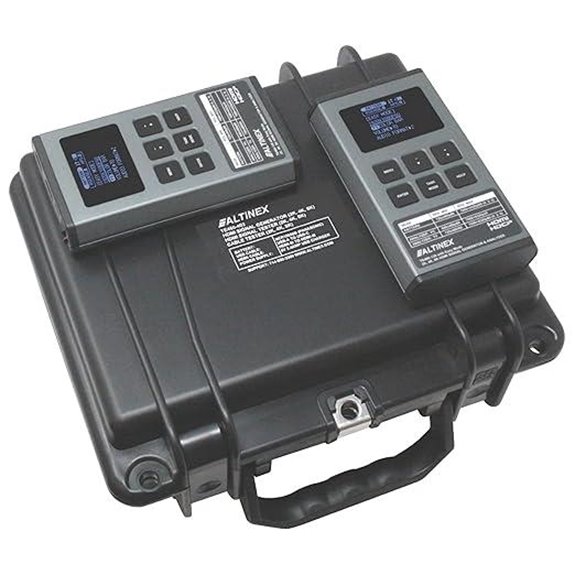

HDMI Signal Generator Analyzer & Cable Tester
Designed for professionals who need precise and versatile signal testing, the HDMI Signal Generator, Analyzer, & Cable Tester stands out with its dual-mode operation—EASY and ADVANCED—that caters to both quick checks and in-depth analysis. EASY mode offers quick access to key features with all info on a single screen, perfect for routine testing. ADVANCED mode liberates detailed analysis, including EDID management, HDMI packet inspection, and customizable settings for expert troubleshooting. Supporting HDMI and DVI with up to 40 Gbps bandwidth, it handles 8K resolution comfortably. Additional features like static test patterns, audio testing, and cable validation make it a comprehensive tool for professional AV setups.
- Resolution Support:8K UHD, 4K, 2K
- Bandwidth:40Gbps
- Test Patterns:20 static patterns
- EDID Management:Extensive EDID options
- Audio Support:LPCM, customizable tones
- Portability/Design:Portable, versatile
- Additional Feature:DVI compatibility
- Additional Feature:Built-in EDID emulation
- Additional Feature:Extensive test pattern options

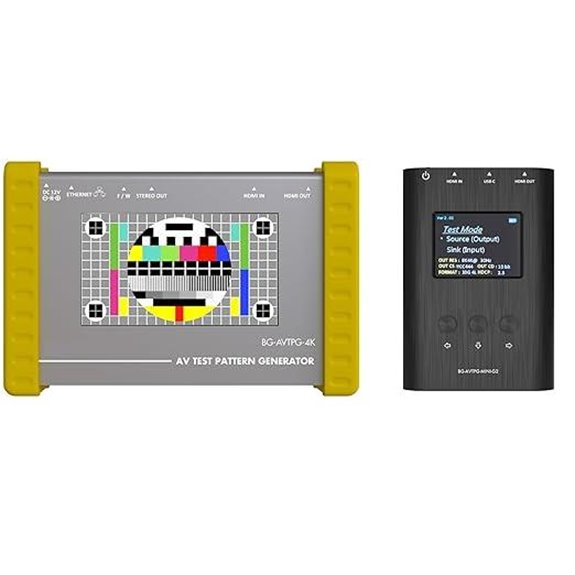

HDMI Test Pattern Generator & Signal Analyzer Kit
For professionals seeking reliable and all-encompassing HDMI testing tools, the HDMI Test Pattern Generator & Signal Analyzer Kit stands out as an essential solution. It combines the BG-AVTPG-4K and BG-AVTPG-MINI-G2, supporting 8K60 and 4K120 resolutions for future-proofing. It offers user-defined patterns, touch panel control, and multiple interfaces—including HDMI, USB-C, USB-A, and Ethernet—for versatile operation. The kit performs HDCP analysis, cable and loop tests, and quick diagnostics to verify signal integrity and link quality. Its portable, rugged design, along with upgradable firmware, makes it ideal for on-the-go troubleshooting and professional installations.
- Resolution Support:8K@60Hz, 4K@120Hz, 1080P
- Bandwidth:48Gbps
- Test Patterns:User-defined, multiple patterns
- EDID Management:User-defined, built-in defaults
- Audio Support:LPCM, test tones
- Portability/Design:Pocket-sized, rugged case
- Additional Feature:User-defined patterns
- Additional Feature:Loop/cable testing
- Additional Feature:Rugged, portable design
Factors to Consider When Choosing HDMI Test Pattern Generators for 8K
When selecting an HDMI test pattern generator for 8K, I focus on several key factors to ensure it meets my needs. Things like resolution compatibility, signal quality, and the variety of test patterns are vital, along with ease of use, portability, and power options. Considering these points helps me find a reliable device that delivers accurate testing and convenience.
Resolution Compatibility Needs
Choosing an HDMI test pattern generator for 8K requires ensuring it can handle the high resolution and data rates involved. First, it must support a minimum resolution of 8K at 60Hz, matching current display standards. Compatibility with HDR and chroma subsampling formats like 4:2:0 is essential for thorough testing across different content types. Additionally, the device should output multiple resolutions, including 8K, 4K, and 2K, to suit various testing scenarios. Bandwidth support is critical—look for generators with at least 40Gbps bandwidth to manage the significant data flow of 8K signals. Finally, consider whether the generator offers customizable or static patterns, enabling precise verification of high-resolution signals and ensuring exhaustive testing capabilities.
Bandwidth and Signal Quality
Supporting 8K@60Hz HDR signals demands a test pattern generator with at least 40 Gbps bandwidth, ensuring the device can transmit high-resolution content without compression or signal loss. I look for a generator that handles high-quality formats like HDR, RGB, and YCbCr to maintain signal integrity, avoiding color distortions or artifacts. It’s essential the device offers extensive signal analysis, including timing, format, and InfoFrame verification, to confirm everything functions correctly. Accurate reproduction of static and dynamic test patterns at 8K resolution is critical for evaluating signal stability over time. Additionally, advanced EDID and HDCP support help prevent bandwidth bottlenecks and encryption issues, ensuring a smooth, consistent signal flow. These features are indispensable for reliable testing and ensuring your setup performs at peak capability.
Test Pattern Variety
A key factor in selecting an HDMI test pattern generator for 8K is the variety of patterns it provides, as this guarantees thorough testing of display and signal performance. A diverse range of static and dynamic patterns allows me to evaluate different aspects effectively, from color accuracy to motion handling. Multiple resolution options, including 8K and lower, give flexibility to test various devices under different conditions. Static patterns serve as consistent reference visuals, while dynamic patterns help assess refresh rates and motion clarity. The ability to customize with user-defined patterns is especially useful for meeting specific standards or unique testing needs. Overall, a broad selection of pattern types ensures I can conduct comprehensive analysis of resolution, contrast, signal integrity, and color fidelity in 8K HDMI systems.
Ease of Operation
When selecting an HDMI test pattern generator for 8K, ease of operation becomes a top priority. I look for devices with intuitive interfaces and straightforward controls, especially if I’m new to HDMI testing. Features like EASY and ADVANCED modes help me quickly set up common tests or explore detailed analysis when needed. Clear on-screen menus and minimal submenu navigation save time and reduce frustration. Touch panel controls and user-defined pattern options make adjustments fast and simple without digging through complex menus. Portability also matters; a compact design with rechargeable batteries allows me to perform tests easily in the field, whether on-site or in remote locations. Overall, a user-friendly device streamlines the testing process and boosts efficiency.
Portability and Power
Choosing a portable HDMI test pattern generator means prioritizing battery life, compact size, and durability. I look for models with rechargeable batteries that support several hours of continuous testing, enabling me to work in remote locations without constant power access. Lightweight, compact designs make setup quick and easy, especially on tight job sites. Connectivity options like USB-C, USB-A, or Ethernet ports simplify recharging and firmware updates, ensuring I stay current with minimal hassle. Rugged, field-ready enclosures are essential to withstand physical shocks and harsh environments, protecting my investment. Overall, a well-designed portable unit combines long battery life, lightweight construction, and durable build quality—making it a reliable tool for on-the-go testing in various challenging conditions.
Advanced Analysis Features
To guarantee reliable 8K signal verification, advanced analysis features are essential in HDMI test pattern generators. These capabilities include thorough source video, audio, and timing analysis, which help ensure signal integrity and identify issues quickly. Support for HDCP and SCDC monitoring enables detection of encryption problems and link status, crucial for maintaining secure and stable connections. Detailed HDMI packet analysis allows for troubleshooting data transmission errors and verifying protocol compliance, saving time and reducing frustration. Extensive EDID emulation, including user-defined options, simplifies compatibility testing across various displays. Overall, these advanced diagnostics provide the in-depth insights needed for professional-grade testing, ensuring your 8K setup performs flawlessly and meets industry standards.
Compatibility With Devices
Ensuring compatibility with your devices is essential when selecting an HDMI test pattern generator for 8K setups, as it directly impacts seamless operation and accurate testing. First, confirm the generator supports 8K at 60Hz to match your devices’ capabilities. Compatibility with HDMI 2.1 is necessary to guarantee smooth connection with the latest hardware. Check for support of various color formats like RGB and YCbCr, along with HDR, so you can accurately test different display types. EDID management features are important for proper handshake and compatibility across multiple sources and displays. Finally, verify that the generator can handle encrypted signals with HDCP 2.3 or 1.4 protocols, ensuring it works seamlessly with protected content sources. These factors help prevent connectivity issues and deliver reliable testing results.
Warranty and Support
When selecting an HDMI test pattern generator for 8K setups, considering the warranty and support options can save you headaches down the line. I recommend choosing a manufacturer that offers at least a one-year warranty to cover defects and repairs. It’s essential to verify if their support team provides dedicated technical assistance for troubleshooting and setup questions, ensuring you’re never left stranded. Make sure the warranty includes both hardware failure coverage and firmware updates, as these are indispensable for maintaining device performance. Accessibility matters too—look for support through multiple channels like phone, email, or live chat, so help is always within reach. Some brands even offer free lifetime technical support, which can be invaluable for ongoing questions or issues without extra costs.
Frequently Asked Questions
How Do HDMI Test Pattern Generators Support Future 8K Content Development?
HDMI test pattern generators support future 8K content development by providing precise, standardized patterns that help guarantee compatibility and performance. I use them to verify resolution, color accuracy, and signal integrity, which is crucial as content quality demands increase. These tools also help identify issues early, enabling me to optimize workflows and ensure that 8K content looks perfect across various devices and setups, guaranteeing a seamless viewing experience.
What Compatibility Issues Should I Consider With Various HDMI Standards?
Think of compatibility like a bridge connecting devices. I always check HDMI standards—2.0, 2.1, or upcoming 3.0—to guarantee smooth communication. Some older devices might struggle with higher resolutions or refresh rates, like trying to fit a square peg in a round hole. So, I verify support for features like bandwidth, HDR, and audio return channels, so everything works seamlessly without hiccups.
Are There Portable HDMI Test Pattern Generators Suitable for Field Use?
Yes, there are portable HDMI test pattern generators designed for field use. I’ve found devices that are compact, lightweight, and easy to operate on the go, making them perfect for on-site testing and troubleshooting. These tools typically offer a variety of test patterns, support multiple HDMI standards, and are powered by batteries. They’re a great choice if you need reliable testing without lugging around bulky equipment.
How Do Test Pattern Generators Ensure Color Accuracy at 8K Resolution?
Ever wonder how test pattern generators guarantee color accuracy at 8K? I’ve found they use precise calibration signals and sophisticated color profiles that mimic real-world content. These devices analyze every pixel, adjusting for color depth, gamma, and luminance in real time. By cross-referencing with industry standards, they make certain every color is spot-on, giving me confidence that my display’s visuals are as accurate and vibrant as the original source.
What Is the Typical Lifespan and Upgradeability of High-End HDMI Test Devices?
High-end HDMI test devices usually last around 5 to 10 years, depending on how often you use them and technological advancements. I recommend choosing models with upgradeable firmware or modular components, so you can keep up with evolving standards like 8K. Regular updates prolong their lifespan and guarantee you stay current without needing a complete replacement. Staying informed about new features helps you maximize your investment over time.
Conclusion
Choosing the right HDMI test pattern generator for 8K might seem intimidating, but with these top options, you’re well on your way to seamless testing and setup. Whether you need HDR support or detailed analysis, these devices cover all bases. So, why settle for less? Investing in a quality generator now guarantees your 8K display performs at its best. Ready to elevate your testing game and future-proof your setup? Let’s get started!
