If I were choosing an HDMI test pattern generator for 4K, I would start with the kind of fault I need to isolate: picture format, HDCP handshake, cable bandwidth, or a broader HDMI 2.1 system issue. The Monoprice Signal Generator and Display Analyzer is the straightforward pick for common 4K60 checks, while the J-Tech Digital 40GA covers a much wider range of formats and diagnostics. For cable checks and handheld 4K work, the ALTINEX TE460-137 has a distinct role; the OREI OPAV-SG-8K offers a more focused 40Gbps generator in a rugged compact enclosure.
Get audio and creator gear delivered free with Prime
- Fast, free delivery on millions of items
- Prime Video, Amazon Music and more included
- Member-only deals all year
My ranking weighs 4K relevance, test coverage, portability, and how clearly each tool’s stated limits fit its role. More patterns and higher resolution do not automatically make a better choice: a simple installer check may call for fewer controls, while fault isolation across audio, EDID, CEC, and HDCP favors the J-Tech. I would also check the fine print: the OREI lists 8K at 30Hz, and the J-Tech’s 8K mode is specified at 4:2:0 and 10-bit.
Complete the kit
Key Takeaways
- The Monoprice is my pick for routine 4K60 checks because it lists 4:4:4 output, HDCP 1.4 and 2.2 options, and display emulation in a simple DIP-switch setup.
- The J-Tech Digital has the broadest stated diagnostic coverage here, with 64 resolutions, 33 patterns, and HDCP, audio, EDID, and CEC testing.
- The ALTINEX stands apart by combining 4K signal work with cable bandwidth testing and 4K-to-1080p scaling in a handheld unit.
- The OREI pairs a compact metal enclosure and LCD with 40Gbps HDMI 2.1 generation, but its listed maximum is 8K at 30Hz.
- For a 4K-only workflow, I would match the tool to the fault: the Monoprice for basic format and handshake checks, ALTINEX for cables, and J-Tech for wider system diagnosis.
| Monoprice HDMI Signal Generator and Display Analyzer |  | Best Overall for Straightforward 4K Checks | Output resolutions: 4K60 4:4:4, 4K60 4:2:0, 4K30 4:4:4, 1080p60 | HDCP: Off, 1.4, 2.2 | Test patterns: 4 | VIEW ON AMAZON | See Our Full Breakdown |
| J-Tech Digital HDMI 2.1 Test Signal Generator and Analyzer, 8K 60Hz, 40Gbps |  | Best for Broad Diagnostics and Newer Systems | HDMI standard: HDMI 2.1 | Maximum resolution: 8K60, 4:2:0, 10-bit | Bandwidth: 40Gbps | VIEW ON AMAZON | See Our Full Breakdown |
| ALTINEX 2K/4K HDMI Signal Generator, Analyzer, and Cable Tester |  | Best for Cable Checks and Handheld 4K Work | Model: TE460-137 | Resolution support: 2K/4K UHD | Bandwidth: 18Gbps (600MHz) | VIEW ON AMAZON | See Our Full Breakdown |
| OREI OPAV-SG-8K HDMI 2.1 Signal Generator, 40Gbps 8K Test Pattern Generator Tool |  | Best Compact HDMI 2.1 Generator | Model: OPAV-SG-8K | HDMI standard: HDMI 2.1 | Maximum resolution: 8K30 | VIEW ON AMAZON | See Our Full Breakdown |
| hdmi test pattern generators for 4k | HDCP | Test patterns | Bandwidth | Functions |
|---|---|---|---|---|
| Monoprice HDMI Signal Generato | Off, 1.4, 2.2 | 4 | — | HDMI signal generator and display emulator/signal analyzer |
| J-Tech Digital HDMI 2.1 Test S | 2.3 and 1.4 | 33 | 40Gbps | — |
| ALTINEX 2K/4K HDMI Signal Gene | — | — | 18Gbps (600MHz) | Signal generation, analysis, cable testing, 4K-to-1080p scaling |
| OREI OPAV-SG-8K HDMI 2.1 Signa | HDCP 2.3 compatibility | 13, including color bars, checkerboard, and gradients | 40Gbps | — |
More Details on Our Top Picks

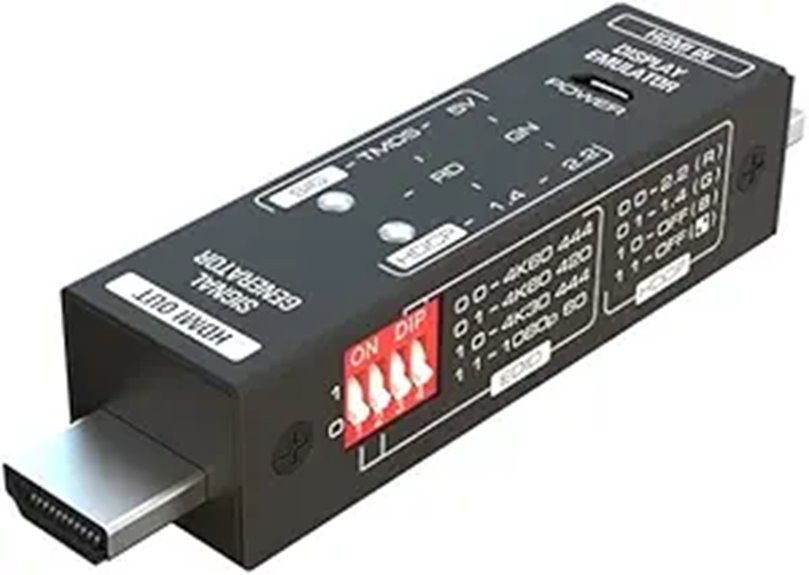

Monoprice HDMI Signal Generator and Display Analyzer
The Monoprice is my best overall pick for common 4K troubleshooting because its listed modes map neatly to tasks many installers face: 4K60 at 4:4:4, 4K60 at 4:2:0, 4K30 at 4:4:4, and 1080p60. The 4:4:4 option is useful when checking whether a display chain can carry full chroma at 4K60, while the lower-bandwidth 4:2:0 mode gives me a way to compare behavior when a source and display disagree about format support.
It also handles HDCP off, 1.4, and 2.2, and can act as a display emulator or signal analyzer. That combination makes it more versatile than a generator that only sends patterns. Compared with the J-Tech, though, the Monoprice has just four patterns and lacks the extensive audio, CEC, and EDID test list. Its DIP switches favor quick, fixed choices over the deeper front-panel exploration described for J-Tech. I would choose it for recurring 4K setup checks, not for complex HDMI 2.1 fault finding.
The tradeoff is a deliberately limited test set: simple configuration, modest coverage. The supplied information does not identify the four patterns individually, so buyers who need particular calibration charts should confirm those details before relying on them. Compared with ALTINEX, Monoprice does not list cable bandwidth testing; compared with OREI, it has no stated HDMI 2.1 or 40Gbps specification. For a technician who primarily needs to verify ordinary 4K60 links and HDCP behavior, the concise feature set is the point.
Pros:- Lists 4K60 output at both 4:4:4 and 4:2:0
- Selectable HDCP off, 1.4, and 2.2
- Combines signal generation with display emulation
- DIP switches keep configuration direct
Cons:- Only four test patterns are specified
- No stated audio, EDID, or CEC test functions
- Cable testing and HDMI 2.1 support are not listed
Best for: Installers who need repeatable 4K60 4:4:4, 4:2:0, and HDCP checks with simple physical controls.
Not ideal for: Technicians who need extensive test patterns, HDMI 2.1 diagnostics, or explicit cable bandwidth testing.
- Output resolutions:4K60 4:4:4, 4K60 4:2:0, 4K30 4:4:4, 1080p60
- HDCP:Off, 1.4, 2.2
- Test patterns:4
- Controls:4-pin DIP switch
- Functions:HDMI signal generator and display emulator/signal analyzer
- ASIN:B0FQBYXFHN
Our verdict“I would choose Monoprice for uncomplicated 4K60 and HDCP checks where a useful, clearly specified mode set matters more than a large diagnostic menu.”

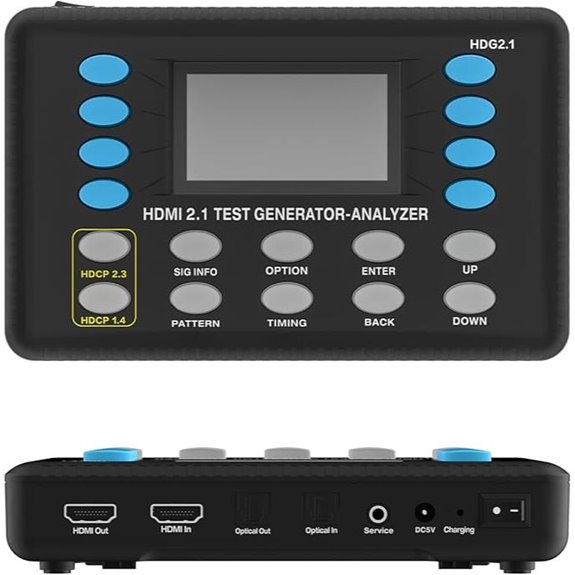

J-Tech Digital HDMI 2.1 Test Signal Generator and Analyzer, 8K 60Hz, 40Gbps
When a 4K display problem may involve several parts of the chain, the J-Tech Digital has the widest stated toolkit in this group. It lists 64 resolutions and 33 test patterns, plus checks for HDCP, audio, EDID, CEC, timing, format, and InfoFrame. That breadth puts it ahead of the Monoprice for fault isolation: instead of stopping at a pattern and HDCP selection, I can use its listed functions to investigate more of the signal and device negotiation.
Its HDMI 2.1 support reaches 40Gbps and 8K at 60Hz, but the specified 8K mode is 4:2:0 at 10-bit. For this guide’s 4K focus, that distinction matters less than the wide resolution and test menus; still, I would not read the headline resolution as a promise of every 8K format. A rechargeable 2910mAh battery and front-panel controls make it more suited to mobile service than the Monoprice’s DIP-switch simplicity. ALTINEX also runs on a rechargeable battery, but its stated battery life is up to four hours and its feature emphasis includes cable testing rather than a broad menu of HDMI 2.1 diagnostics.
The J-Tech’s scope may be unnecessary if all I need is to check a 4K60 image and a common HDCP handshake. Its audio testing is specifically limited to two-channel LPCM and external S/PDIF input, so it is not a substitute for every audio test setup. The supplied description does not give a battery runtime, either. I would rank it first for technicians moving between varied sources, displays, and HDMI 2.1 systems, but put Monoprice ahead for a simpler, focused 4K check.
Pros:- Lists 64 resolutions and 33 test patterns
- Includes HDMI 2.1 at 40Gbps and 8K60 4:2:0 10-bit support
- Tests HDCP, EDID, CEC, timing, format, and InfoFrame
- Portable unit has front controls and a rechargeable battery
Cons:- 8K60 is specified at 4:2:0 and 10-bit
- Audio test scope is limited to two-channel LPCM and external S/PDIF
- Battery runtime is not specified in the supplied details
Best for: AV technicians who need extensive resolution and pattern choices alongside HDMI 2.1, EDID, CEC, HDCP, and basic audio checks.
Not ideal for: Buyers who only need a simple 4K pattern source or who require broader multichannel audio testing.
- HDMI standard:HDMI 2.1
- Maximum resolution:8K60, 4:2:0, 10-bit
- Bandwidth:40Gbps
- Resolution choices:64
- Test patterns:33
- HDCP:2.3 and 1.4
- Audio testing:Two-channel LPCM and external S/PDIF input
- Battery:Rechargeable, 2910mAh
Our verdict“I would pick the J-Tech when diverse HDMI diagnostics matter more than a minimal control layout or a narrowly focused 4K signal check.”

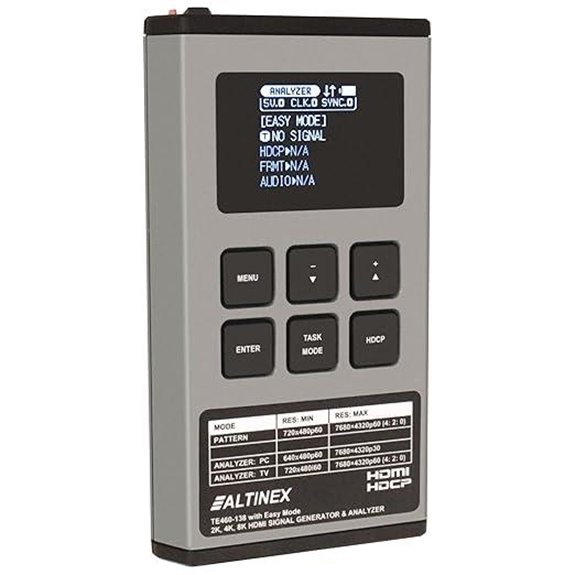

ALTINEX 2K/4K HDMI Signal Generator, Analyzer, and Cable Tester
ALTINEX earns its place through a combination the other entries do not explicitly match: signal generation, analysis, and cable testing. If a 4K picture drops out or a link fails at higher bandwidth, a cable-focused test can be more useful than simply cycling through patterns. Its listed 18Gbps bandwidth and HDMI 2.0a support suit 4K-era systems, while HDCP 1.4 and 2.2 and EDID management address common compatibility questions.
Compared with Monoprice, the ALTINEX adds cable bandwidth testing and the ability to scale 4K sources to 1080p. That scaling can help when I need to check whether a source works with a lower-resolution display or isolate a compatibility problem. It also has an integrated display and weighs 260g, giving it a clearly handheld profile. The J-Tech offers a wider set of test patterns and HDMI 2.1 diagnostics, though; I would prefer that model for varied modern systems where CEC, audio, and InfoFrame checks are useful.
Its main limitation is generational reach: 18Gbps and HDMI 2.0a make it a 4K tool, not the strongest fit for testing newer 40Gbps HDMI 2.1 chains. The rechargeable battery is specified for up to four hours, with micro USB also listed as a power source. That can suit short field visits, but is less reassuring for long jobs without access to power. I would choose ALTINEX when cable diagnosis and 4K-to-1080p compatibility are central; for pattern variety alone, the J-Tech leads.
Pros:- Combines generation, analysis, and cable bandwidth testing
- Supports HDCP 1.4/2.2 and EDID management
- Can scale 4K sources to 1080p
- Handheld design includes a display and rechargeable battery
Cons:- 18Gbps HDMI 2.0a specification does not cover the newer 40Gbps tools
- Battery life is listed as up to four hours
- No test pattern count is provided in the supplied details
Best for: Installers troubleshooting 4K HDMI cables and compatibility between 4K sources and 1080p displays.
Not ideal for: Technicians validating HDMI 2.1 links, 40Gbps bandwidth, or a large selection of patterns.
- Model:TE460-137
- Resolution support:2K/4K UHD
- Bandwidth:18Gbps (600MHz)
- Standards:HDMI 2.0a; HDCP 1.4/2.2
- Functions:Signal generation, analysis, cable testing, 4K-to-1080p scaling
- Power:Rechargeable lithium-ion battery or micro USB
- Battery life:Up to 4 hours
- Weight:260g
Our verdict“I would choose ALTINEX when cable behavior and downscaling compatibility are the real 4K troubleshooting questions.”
OREI OPAV-SG-8K HDMI 2.1 Signal Generator, 40Gbps 8K Test Pattern Generator Tool
The OREI is a focused field tool for people who want an HDMI 2.1, 40Gbps signal source in a small, rugged enclosure. Its 13 patterns include color bars, checkerboard, and gradients, making it more pattern-rich than Monoprice’s four listed patterns. It also has an integrated LCD, USB-C power, and selectable RGB and YUV color formats. For checking displays or AV equipment in a rack or on site, the enclosure and on-device screen make its role easy to understand.
Its 8K limit deserves a close read: OREI lists 8K at 30Hz, whereas J-Tech lists 8K at 60Hz, albeit at 4:2:0 and 10-bit. The J-Tech also specifies 64 resolutions and 33 patterns, so it is the more flexible choice for broad diagnostics. OREI may suit a technician who values a compact generator with a stated 40Gbps ceiling and basic visual patterns, without needing J-Tech’s listed audio, EDID, and CEC test functions.
OREI’s description does not list 4K modes in detail, nor does it specify an HDCP selection menu; it names HDCP 2.3 compatibility. I would verify the exact 4K output formats and control options against a particular job before buying. It is USB-C powered rather than described as battery powered, so field use depends on having a suitable power source. Against the handheld, rechargeable ALTINEX, this is less clearly suited to untethered work, but it targets newer HDMI bandwidth and has a rugged metal case.
Pros:- HDMI 2.1 generator specified for 40Gbps
- Thirteen patterns include color bars, checkerboard, and gradients
- Compact metal enclosure with integrated LCD
- USB-C powered and supports RGB and YUV formats
Cons:- Maximum listed resolution is 8K30
- Only 13 patterns are listed, fewer than J-Tech’s 33
- Detailed 4K modes and HDCP selection options are not specified
Best for: Field technicians who want a compact HDMI 2.1 generator with 40Gbps support, an LCD, and built-in visual patterns.
Not ideal for: Buyers who require 8K60, extensive audio and CEC diagnostics, or documented battery operation.
- Model:OPAV-SG-8K
- HDMI standard:HDMI 2.1
- Maximum resolution:8K30
- Bandwidth:40Gbps
- HDCP:HDCP 2.3 compatibility
- Test patterns:13, including color bars, checkerboard, and gradients
- Color formats:RGB and YUV
- Power and display:USB-C powered; integrated LCD
Our verdict“I would choose OREI for a compact, rugged 40Gbps signal generator, after confirming that its documented modes match the exact 4K format I need.”
How We Picked
I ranked these four tools around the practical job implied by 4K HDMI test patterns: sending a known signal to a display or downstream device, then narrowing down whether a fault relates to format support, a handshake, a cable, or a broader system setting. I gave weight to clearly specified 4K modes, chroma information, HDCP options, and any stated analysis or cable test functions. A high maximum resolution can help with newer systems, but it does not tell me by itself how useful a unit is for routine 4K troubleshooting.
I also compared the products by diagnostic breadth and field fit. The J-Tech lists the most patterns and diagnostic categories, while ALTINEX explicitly includes cable bandwidth testing and scaling. Monoprice favors a compact set of common output modes and DIP-switch controls. OREI offers HDMI 2.1 generation, an LCD, and a rugged metal body, with a smaller pattern set than J-Tech. I treated stated limits as part of the decision: OREI specifies 8K at 30Hz, and J-Tech specifies 8K at 60Hz in 4:2:0, 10-bit. I did not infer unlisted capabilities or claim hands-on test results.
| hdmi test pattern generators for 4k | Functions | Model |
|---|---|---|
| Monoprice HDMI Signal Generato | HDMI signal generator and display emulator/signal analyzer | — |
| J-Tech Digital HDMI 2.1 Test S | — | — |
| ALTINEX 2K/4K HDMI Signal Gene | Signal generation, analysis, cable testing, 4K-to-1080p scaling | TE460-137 |
| OREI OPAV-SG-8K HDMI 2.1 Signa | — | OPAV-SG-8K |
Factors to Consider When Choosing Hdmi Test Pattern Generators For 4k
I would begin with the failure I need to reproduce, then check whether the generator can produce that exact format and test the relevant part of the chain. A 4K label alone does not tell me whether a tool covers 4K60 at full chroma, cable bandwidth, HDCP negotiation, or HDMI 2.1 diagnostics.Match resolution, refresh rate, and chroma
For 4K troubleshooting, I look for the specific output combinations I use, not just a maximum resolution. 4K60 4:4:4 is useful when checking high-detail computer or signage output, while a 4:2:0 mode can help compare a lower-bandwidth path. Monoprice explicitly lists both formats at 60Hz. ALTINEX states 2K/4K UHD and 18Gbps, while OREI’s supplied details do not enumerate its 4K modes. J-Tech offers 64 resolutions, but I would confirm the exact format before relying on a less common combination.
Choose diagnostic depth for the fault
A pattern generator can show whether a display renders a known image, but some failures need other tools. HDCP controls help isolate content-protection handshakes; EDID functions address what a display reports it can accept; CEC and audio tests matter when the fault reaches beyond video. J-Tech lists the widest set of these checks. Monoprice covers selectable HDCP and display emulation, while ALTINEX adds EDID management. I would favor the more specialized feature only if it relates to a recurring problem in my installations.
Treat cable testing as its own requirement
If I suspect a cable, I want a tool that says it tests cable bandwidth or compliance. ALTINEX explicitly includes cable bandwidth testing, which gives it an advantage for that task over the other listed products. Its 18Gbps specification aligns with HDMI 2.0a-era 4K links. J-Tech and OREI list 40Gbps operation, but the supplied descriptions do not call out cable testing. High signal bandwidth and cable-test functionality are different claims, so I would not assume one from the other.
Read 8K specifications beyond the headline
Although this roundup centers on 4K, an 8K specification can indicate whether a tool fits a newer system. The exact mode matters: J-Tech lists 8K60 at 4:2:0 and 10-bit, while OREI lists 8K30 and 40Gbps. Neither headline alone describes every possible resolution, chroma, and bit-depth combination. For a specific system, I would compare the tool’s stated format with the source, cable, and display requirements rather than choosing by the largest number on the box.
Plan for controls, power, and job length
Controls and power affect whether I can use a tester comfortably at a display or rack. Monoprice’s DIP switches suit a small set of repeatable modes. J-Tech has front-panel controls and a rechargeable battery, though its runtime is not stated in the supplied information. ALTINEX lists up to four hours of battery life and micro USB power. OREI has an LCD and USB-C power, with no battery operation specified. I would pick based on how long I work away from an outlet and how often I change modes.
Check pattern count against actual use
More patterns can make it easier to inspect color, geometry, gradients, or pixel behavior, but a count is not a substitute for knowing which patterns are included. J-Tech lists 33 patterns; OREI names 13 and gives examples. Monoprice lists four without naming them in the supplied description, and ALTINEX’s pattern count is not provided. If a particular chart is essential to a calibration routine, I would verify that it is included before selecting a unit.
Frequently Asked Questions
What should I look for in a 4K HDMI test pattern generator?
I would check supported resolution and refresh rate combinations, chroma formats, HDCP options, and whether the tool includes the diagnostic functions I need. For example, the Monoprice explicitly lists 4K60 4:4:4 and 4:2:0 plus HDCP off, 1.4, and 2.2. If I need cable bandwidth testing, ALTINEX is the product here that explicitly lists that function. A stated 4K or 8K maximum by itself does not answer every format question.
Is 4K60 4:4:4 support useful for testing?
It is useful when I need to check whether a chain carries 4K at 60Hz with full chroma, such as for detailed computer graphics or text. Monoprice specifically lists this mode, alongside 4K60 4:2:0, so I can compare format behavior. If a system only needs video playback at another format, the extra mode may not decide my purchase. I would match the generator’s stated output to the source and display modes I need to diagnose.
Which option is best for HDMI cable troubleshooting?
ALTINEX is the clearest fit in this lineup because its description explicitly includes cable bandwidth and compliance testing, in addition to 4K signal generation and analysis. Its listed bandwidth is 18Gbps, which places its stated scope around HDMI 2.0a-era systems. J-Tech and OREI specify 40Gbps signal capabilities, but their supplied descriptions do not identify a cable test function. I would distinguish a generator’s bandwidth from an explicit cable test feature.
Do I need an HDMI 2.1 generator for a 4K display?
Not for every 4K job. If I mainly check common 4K60 formats and HDCP behavior, Monoprice’s listed modes may cover the need. HDMI 2.1 generation makes more sense when I work on newer equipment or need the higher bandwidth scope specified by J-Tech and OREI. I would still verify the exact refresh rate, chroma, and bit depth for the system, since an HDMI 2.1 label does not state every available combination.
Which generator is easiest to carry for field service?
ALTINEX is a clear handheld option at 260g and lists up to four hours of rechargeable battery operation, though that duration may not cover a long day without charging. J-Tech is portable and rechargeable, but the supplied details give battery capacity rather than runtime. OREI is compact and has an LCD, but is described as USB-C powered rather than battery powered. I would choose according to whether untethered runtime or a small powered unit matters more.
Conclusion
For routine checks of 4K60 formats and HDCP, I would start with Monoprice: its stated modes and simple switches suit repeatable setup work. I would choose J-Tech when I need a wider diagnostic bench in portable form, especially for HDMI 2.1 systems involving EDID, CEC, timing, and audio checks. For cable-focused jobs or 4K-to-1080p compatibility, ALTINEX has the more distinctive toolkit. OREI makes the most sense when a compact metal generator, LCD, and 40Gbps capability fit the job, provided its listed 8K30 ceiling and unspecified detailed 4K modes are acceptable. The right pick is the one whose exact output formats and diagnostic functions match the fault I need to find.
