Key Takeaways
- The AVMATRIX PG4K is best suited for professional 4K and 12G-SDI calibration with complex connectivity needs.
- SPROLINK SG-UHD offers high resolution, portability, and extensive pattern support, ideal for broadcast and field use.
- JTECH-40GA caters to those testing the latest HDMI standards up to 8K with HDR, but is more advanced and costly.
- GME models are excellent for simple, portable testing of analog or basic digital signals, suitable for hobbyists and field techs.
- Tradeoffs often involve complexity and price versus portability and ease of use, influencing the best choice for your needs.
| AVMATRIX PG4K 12G-SDI & 4K HDMI 2.0 Pattern Generator with 12G SFP Port |  | Best Overall for Professional 4K and 12G-SDI Calibration | Video Output: 12G-SDI (4K60Hz), HDMI 2.0 (4K) | SDI Support: 6G, 3G-SDI Level A and B, dual and quad link | Audio: 16-channel SDI audio generation | VIEW ON AMAZON | See Our Full Breakdown |
| SPROLINK SG-UHD 4K UHD Signal Generator with HDMI 2.0 & Dual 3G-SDI |  | Best for Portable, Versatile Broadcast Testing | Output Formats: SD/HD/UHD up to 4K UHD and DCI-4K | Video Outputs: 2× 3G-SDI, 1× HDMI 2.0, 1× SFP optical fiber | Test Patterns: SMPTE color bars, custom images, linear, grid, ramp, window, crosstalk | VIEW ON AMAZON | See Our Full Breakdown |
| HDMI Test Signal Generator Analyzer Up to 8K 60Hz HDR 40Gbps, 64 Video Resolution, 33 Patterns, HDMI 2.1, HDCP 2.3, CEC [JTECH-40GA] | ” image=”https://m.media-amazon.com/images/I/617T2rTjplL._AC_SY300_SX300_QL70_FMwebp_.jpg” link=”0″] | Best for High-Resolution HDMI Testing Up to 8K | Resolution Support: Up to 8K@60Hz | Bandwidth: 40Gbps | HDR: Supported | VIEW ON AMAZON | See Our Full Breakdown |
| GME PG-28 Portable Video Test Pattern Generator for TV and NTSC Monitor |  | Best for Basic TV and NTSC Testing | Test Patterns: 8 (Color Bars, Cross Hatch, Dot, Staircase, Circle, Center Cross, Window, Raster) | Power Options: AC adaptor or 9V battery | Designed in: USA | VIEW ON AMAZON | See Our Full Breakdown |
| GME PG-16A Portable Video Test Pattern Generator for PC, MAC, and TV Monitors |  | Best for Multi-Platform Monitor Calibration | Resolution Support: 8 PC and 4 MAC monitor resolutions | Test Patterns: Color Bars, Cross Hatch, Dot, Checker, Circle, Center Cross, Window, Raster | Power Source: AC adaptor or 9V battery | VIEW ON AMAZON | See Our Full Breakdown |
| av test pattern generator | Test Patterns |
|---|---|
| AVMATRIX PG4K 12G-SDI & 4K HDM | — |
| SPROLINK SG-UHD 4K UHD Signal | SMPTE color bars, custom images, linear, grid, ramp, window, crosstalk |
| HDMI Test Signal Generator Ana | 33 |
| GME PG-28 Portable Video Test | 8 (Color Bars, Cross Hatch, Dot, Staircase, Circle, Center Cross, Window, Raster) |
| GME PG-16A Portable Video Test | Color Bars, Cross Hatch, Dot, Checker, Circle, Center Cross, Window, Raster |
More Details on Our Top Picks
AVMATRIX PG4K 12G-SDI & 4K HDMI 2.0 Pattern Generator with 12G SFP Port
The AVMATRIX PG4K stands out for its ability to handle high-resolution 12G-SDI and HDMI 2.0 signals, making it ideal for professional setups that demand precision. Its support for multiple SDI levels, pattern import, and overlay features provide a comprehensive toolkit for calibration and testing. Compared with portable options, it offers more connectivity options and advanced features, but its complex interface and higher cost might be a barrier for casual users. This generator is best suited to broadcast engineers who need detailed, reliable testing across multiple formats but are comfortable with a steeper learning curve.
Pros:- Supports 12G-SDI and 4K HDMI 2.0 for high-end video formats
- Multiple SDI levels and input/output options for versatile setup
- Built-in patterns and pattern import via USB for customization
- Overlay test features enhance calibration accuracy
Cons:- Complex interface can be intimidating for beginners
- No pricing info available, potentially costly
- Optional SFP port may add extra expense
Best for: Professional AV engineers and broadcast technicians requiring high-end calibration.
Not ideal for: Casual users or hobbyists who need simple, portable testing tools.
- Video Output:12G-SDI (4K60Hz), HDMI 2.0 (4K)
- SDI Support:6G, 3G-SDI Level A and B, dual and quad link
- Audio:16-channel SDI audio generation
- Inputs:REF IN, USB, COM Port, LAN, DC 12V
- Additional Features:Built-in patterns, pattern import via USB, overlay test features, optional SFP port
Our verdict“A highly capable, professional-grade pattern generator ideal for complex 4K and 12G-SDI calibration tasks.”
SPROLINK SG-UHD 4K UHD Signal Generator with HDMI 2.0 & Dual 3G-SDI
The SPROLINK SG-UHD offers support for multiple formats, including UHD and DCI-4K, with dual 3G-SDI and HDMI 2.0 outputs. Its rugged, portable design makes it perfect for field technicians and broadcasters needing reliable testing on the go. Its extensive set of test patterns, including SMPTE color bars, custom images, and linear grids, cover most professional calibration scenarios. Compared with larger, more complex units, it sacrifices some advanced connectivity options for ease of transport and quick setup. However, its setup complexity can still challenge less experienced users, and the lack of detailed UI info may slow troubleshooting. It’s well suited to those needing a portable, comprehensive test tool for on-site testing.
Pros:- Supports 4K UHD and DCI-4K formats
- Multiple test patterns including custom images
- Rugged and portable design
- Supports extensive audio testing
Cons:- Setup may be complex for newcomers
- Limited UI details available
- No wireless connectivity options mentioned
Best for: Field technicians and broadcasters needing portable, high-format support.
Not ideal for: Casual hobbyists or users requiring simple, plug-and-play calibration.
- Output Formats:SD/HD/UHD up to 4K UHD and DCI-4K
- Video Outputs:2× 3G-SDI, 1× HDMI 2.0, 1× SFP optical fiber
- Test Patterns:SMPTE color bars, custom images, linear, grid, ramp, window, crosstalk
- HDMI Support:VESA & CEA-861, up to 240Hz, RGB / YCbCr 4:4:4 / 4:2:2 / 4:2:0, 10/12-bit
- Audio Testing:Up to 16 channels embedded AES/EBU
- Display:4.3-inch LCD
- Power:DC 12V or USB-C 5V
- Weight:310g
Our verdict“A portable, versatile generator suited for on-location broadcast testing with extensive pattern options.”
HDMI Test Signal Generator Analyzer Up to 8K 60Hz HDR 40Gbps, 64 Video Resolution, 33 Patterns, HDMI 2.1, HDCP 2.3, CEC [JTECH-40GA]
” image=”https://m.media-amazon.com/images/I/617T2rTjplL._AC_SY300_SX300_QL70_FMwebp_.jpg” link=”0″]Best for High-Resolution HDMI Testing Up to 8K
View on AmazonThe JTECH-40GA delivers cutting-edge HDMI testing capabilities with support for up to 8K at 60Hz, HDR, and 40Gbps bandwidth. Its extensive pattern set and advanced validation features, including HDCP 2.3 and CEC, make it ideal for testing the latest HDMI enabled devices. While its feature set is impressive, this unit targets users working with the newest consumer and professional HDMI standards. Its higher complexity and cost could be overkill for casual users or those testing only basic resolutions. Compared to other units, it offers the most future-proof testing but demands a steep learning curve and bigger budget.
Pros:- Supports 8K@60Hz with HDR and 40Gbps bandwidth
- Includes 33 built-in patterns for detailed testing
- Advanced validation with HDCP 2.3 and CEC
- Rechargeable battery with portable design
Cons:- Complex for casual users due to advanced features
- No pricing info available, likely expensive
- Limited user reviews for reliability assessment
Best for: Professionals testing 8K HDMI devices or high-end AV setups.
Not ideal for: Budget-conscious users or those only working with 4K or lower resolutions.
- Resolution Support:Up to 8K@60Hz
- Bandwidth:40Gbps
- HDR:Supported
- Color Formats:RGB/YCbCr
- Test Patterns:33
- Video Resolutions:64
- HDCP:2.3/1.4
- Audio:LPCM 2CH
- Power:Rechargeable 2910mAh battery
Our verdict“A future-proof HDMI test tool designed for high-end AV professionals working with 8K content.”

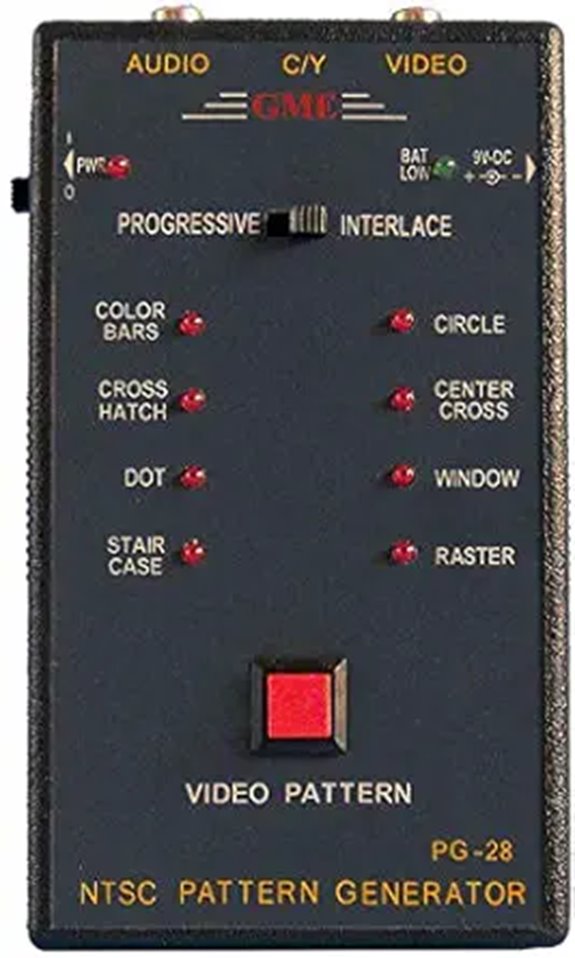

GME PG-28 Portable Video Test Pattern Generator for TV and NTSC Monitor
The GME PG-28 is designed mainly for testing analog TV and NTSC monitors. Its limited pattern set makes it straightforward for quick calibration tasks, and its portability allows field technicians to carry it easily. It offers eight basic test patterns, suitable for simple troubleshooting, but lacks digital or HDMI compatibility. The device operates on AC or 9V battery, providing flexibility for on-site work. Compared with digital units, this generator is less suitable for modern high-res testing, but it excels in simplicity and portability for specific legacy applications.
Pros:- Wide variety of basic test patterns
- Portable and lightweight
- Operates on AC or 9V battery
- Simple to operate with single-button pattern selection
Cons:- Limited to NTSC and analog signals
- No digital or HDMI support
- Limited pattern options for detailed calibration
Best for: Field technicians working with analog TVs or NTSC monitors needing quick testing.
Not ideal for: Users testing digital or HDMI devices or requiring advanced calibration features.
- Test Patterns:8 (Color Bars, Cross Hatch, Dot, Staircase, Circle, Center Cross, Window, Raster)
- Power Options:AC adaptor or 9V battery
- Designed in:USA
Our verdict“A straightforward, portable test pattern generator suitable for legacy analog TV calibration and troubleshooting.”

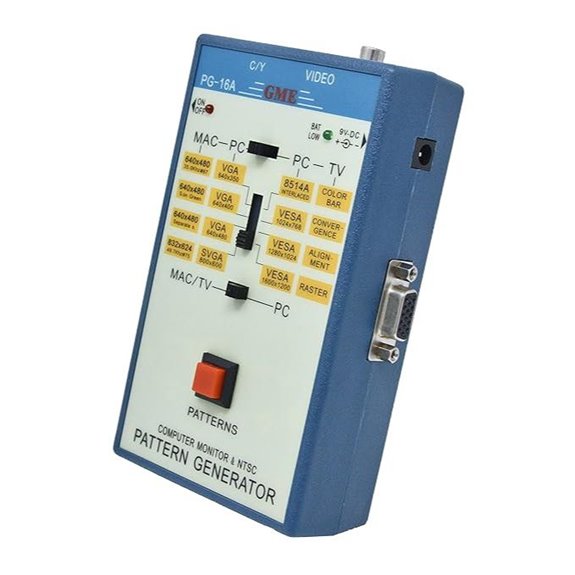

GME PG-16A Portable Video Test Pattern Generator for PC, MAC, and TV Monitors
The GME PG-16A is tailored for professionals needing to calibrate a range of PC, MAC, and TV monitors. It supports multiple resolutions and offers a broad palette of patterns, making it suitable for detailed calibration work. Its portability and dual power options contribute to its flexibility for field and bench use. While it provides extensive pattern choices and supports various resolutions, it lacks additional testing features such as audio or digital signal validation. This makes it a good choice for monitor calibration but less suited for comprehensive AV testing.
Pros:- Supports multiple monitor resolutions
- Wide variety of patterns for calibration
- Portable with dual power options
- Supports PC, MAC, and TV monitors
Cons:- Requires external power or batteries
- Limited to pattern generation, no complex validation features
- Designed primarily for professional use, which might be complex for casual users
Best for: Calibration professionals working with multiple monitor types and resolutions.
Not ideal for: Those needing advanced signal validation or HDMI-specific testing features.
- Resolution Support:8 PC and 4 MAC monitor resolutions
- Test Patterns:Color Bars, Cross Hatch, Dot, Checker, Circle, Center Cross, Window, Raster
- Power Source:AC adaptor or 9V battery
- Designed in:USA
Our verdict“A versatile, portable generator ideal for calibrating various computer and TV monitors with broad pattern options.”
How We Picked
Our selection process focused on balancing professional-grade features with user-friendly design and value. I examined product specifications, versatility, and connectivity options, prioritizing units supporting the latest formats like 4K and 8K. We also considered portability, ease of operation, and the breadth of test patterns offered, aiming to cover a range of users from broadcast engineers to hobbyists. Price and user feedback played a role in assessing long-term reliability and overall value, ensuring each pick fills a specific niche in the AV testing landscape.
Factors to Consider When Choosing Av Test Pattern Generators
Picking the right AV test pattern generator hinges on understanding your specific calibration needs, environment, and technical expertise. For high-end broadcast setups or detailed 4K/8K testing, investing in a professional-grade device like the AVMATRIX PG4K or JTECH-40GA makes sense, but these come with complexity and higher costs. Field use and portability are priorities for many users, making models like the SPROLINK SG-UHD or GME PG-28 attractive options. If your needs are limited to analog or basic digital signals, simpler units like the GME PG-28 or PG-16A provide adequate features at a lower price and with straightforward operation. Keep in mind that advanced features often mean a steeper learning curve, while simplicity may restrict testing scope. Your choice should reflect your technical comfort, resolution requirements, and whether portability or feature richness is your main concern.
Professional-Grade AV Test Pattern Generators
These units, such as the AVMATRIX PG4K and JTECH-40GA, offer support for the latest formats, including 4K, 8K, and high dynamic range (HDR). They are suitable for broadcasters, post-production facilities, and professional calibration labs that demand precise, versatile testing capabilities. These models typically have extensive connectivity options, support for multiple SDI and HDMI standards, and advanced pattern import features. The tradeoff is that they are more complex to operate and come at a higher price point, making them less suitable for casual or entry-level use.
Portable and Broadcast-Ready Testing Tools
Models like the SPROLINK SG-UHD excel in portability, offering support for UHD and DCI-4K formats with dual SDI and HDMI outputs. Designed for field technicians, they combine ruggedness with a comprehensive set of test patterns, making them ideal for quick calibration on location. While they sacrifice some advanced features or connectivity options found in professional units, their ease of use and mobility make them a favorite for on-the-fly testing scenarios. They are less suited for detailed post-production calibration or complex signal validation but excel in reliability and convenience.
Entry-Level and Legacy Testing Devices
For those working primarily with analog signals or basic digital setups, the GME PG-28 and PG-16A provide simple, effective solutions. These units are lightweight, battery-operated, and straightforward, focusing on essential test patterns for TVs and monitors. They are affordable and easy to operate but lack digital or HDMI compatibility, limiting their use to older equipment. They are perfect for hobbyists, repair technicians, or field workers needing quick, reliable tests without the complexity of high-end gear.
Frequently Asked Questions
What is an AV test pattern generator used for?
An AV test pattern generator creates standardized video signals with specific test patterns that help calibrate, troubleshoot, and validate the performance of video equipment. These patterns assist in checking color accuracy, geometry, resolution, and signal integrity, ensuring that displays and transmission systems operate correctly and consistently.
What features are important in a professional AV test pattern generator?
Key features include support for high-resolution formats like 4K and 8K, multiple connectivity options such as SDI, HDMI, and fiber, extensive pattern libraries, and pattern import capabilities. Advanced validation features like HDCP, CEC, and audio testing are also valuable for comprehensive calibration, especially in broadcast or production environments.
Can portable test pattern generators handle high-resolution signals?
Yes, some portable units like the SPROLINK SG-UHD support 4K UHD and even DCI-4K formats, making them suitable for field testing of modern broadcast signals. However, units supporting 8K at 60Hz, such as the JTECH-40GA, tend to be more advanced and may require careful handling, especially given their complexity and cost.
Are basic pattern generators sufficient for professional calibration?
While basic generators like the GME PG-28 and PG-16A can handle fundamental calibration tasks for analog and older digital displays, they lack support for modern digital signals and advanced patterns. For professional environments needing precise, multi-format testing, investing in higher-end devices with extensive connectivity and pattern options is advisable.
How do I choose between an analog and digital AV pattern generator?
The choice depends on your equipment. If you’re working with vintage analog TVs or monitors, an analog generator like the GME PG-28 is suitable. For digital displays, especially 4K and above, a digital generator supporting HDMI, SDI, and high-resolution patterns will be necessary. Consider your current and future equipment to ensure compatibility and scalability.
Conclusion
If you primarily work with professional broadcast equipment or need detailed calibration for high-resolution formats, the AVMATRIX PG4K or JTECH-40GA will serve you best, despite their complexity and cost. Field technicians and broadcasters requiring portability should lean toward the SPROLINK SG-UHD, which balances versatility with ease of use. For those dealing with legacy analog signals or simple digital setups, the GME PG-28 or PG-16A offer straightforward, affordable solutions. Your choice should reflect your specific technical needs, environment, and whether advanced features or simplicity are your priority.
